VICTOR VC60B+ VC60D+ VC60E+ 10000V/2500V/5000V Digital Insulation Resistance Tester Digital Megohmmeter(VICTOR VC60B+)

Marca: YuqiaoTime
Fuente de alimentación: Batería
Estilo: Insulation Resistance Tester
Color: Multicolored
Dimensiones del producto: largo x ancho x alto: 20 x 15 x 18 centímetros
Especificación cumplida: CE, FCC, ISO 9001, RoHS
Temperatura superior nominal: 50 Grados Celsius
Duración de la disponibilidad de piezas de recambio en la UE: 3 Años
Número de unidades: 1.0 Conteo
Número de productos: 1

- This instrument adopts the DC Voltage convertor of low consumption and high converter ratio inductance energy storage, to change the 9V Voltage to 250V/500V/1000V (VC60B+) 1000V/2500V (VC60D+), 2500V/5000V (VC60E+) DC Voltage. It uses digital bridge to make the insulation resistance measurement had the features of user-friendly, high extent range, backlight display, data hold and auto power off.

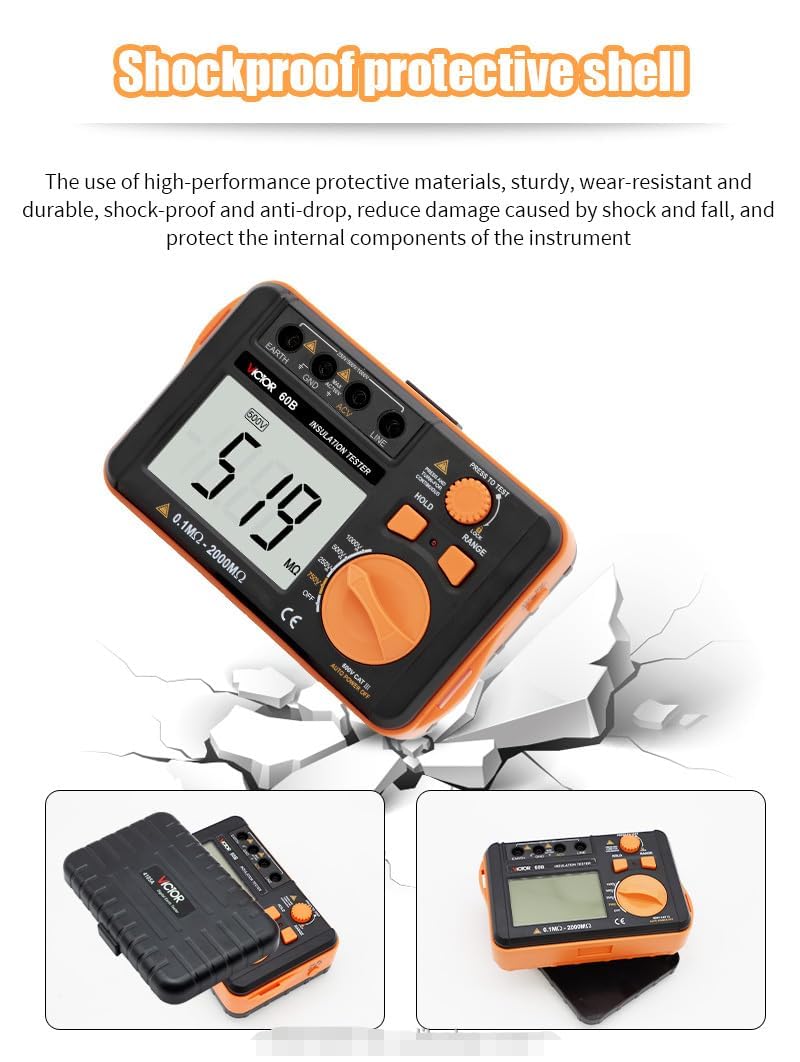

- The whole instrument is stylish and superior grade in appearance and high stable in performance, it can be operated by both hands through using a shoulder strap. It is most suitable for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.

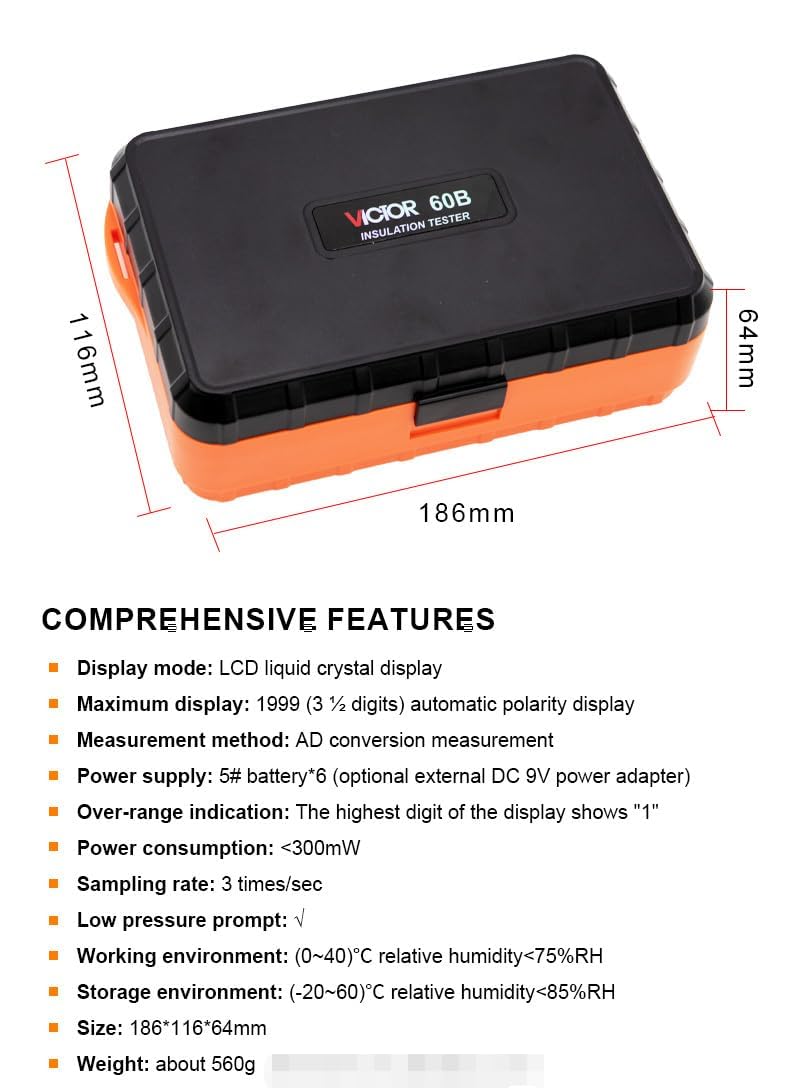

- (1) Display:84.8×59.8mm LCD display, max.“1999”. (2) Over range indicator:display“1”. (3) Power:5# battery LR6 (1.5V) ×6 (or external AC adaptor), no battery indicator.Auto power off (approx. 15miutes after turning on (4) Power consumption:consumption is less than 300mw at unload measurement. (5) Operation environment:Temperature 0°C—40°C. Relative humidity 30%RH—85RH. (6) Dimension:175(L) ×110(W) ×70(D) mm. (7) Weight:630 g (including batteries).
- Large LCD 2000 counts display, easy to read. Test voltage for your choice:VC60B+ : 250V / 500V / 1000V. VC60D+:1000V/2500V VC60E+: 2500V/5000V Reliable insulation resistance tester with stable performance.

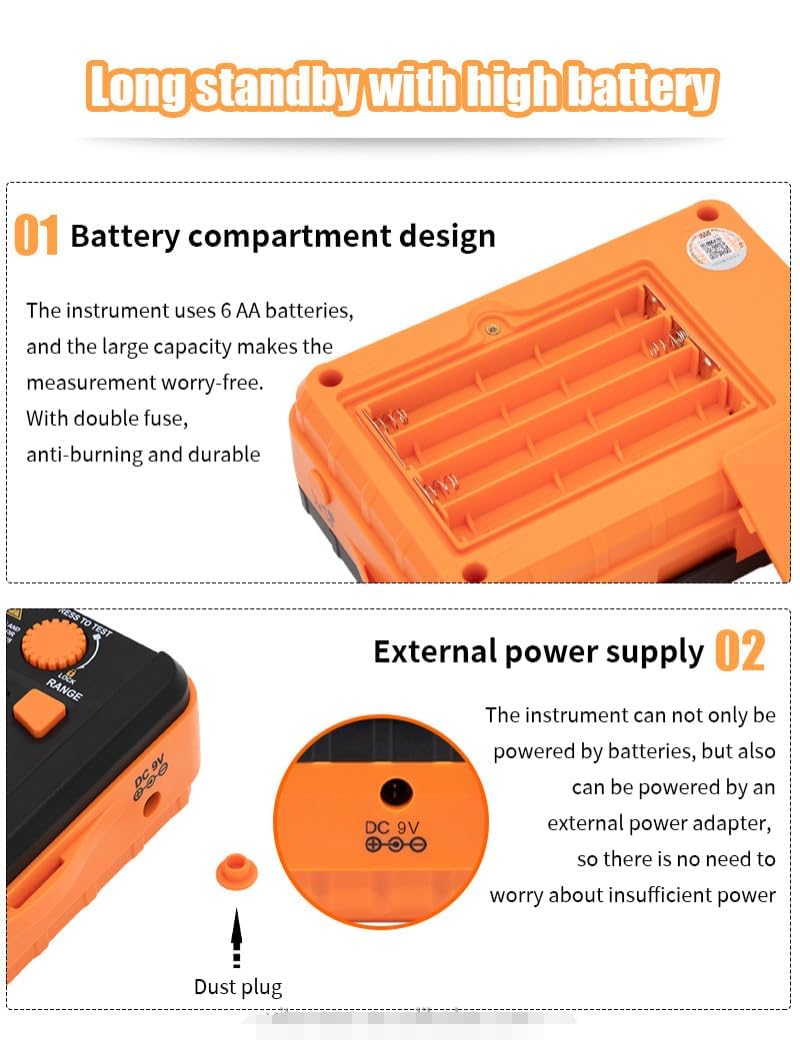

- Locking function of test button, wide measurement range, convenient to use. Perfect overload protection, widely used for insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities. Powered by 6 batteries(not included), with low battery indication and 750V AC voltage test.
